Do I Need Structural Calculations for a Steel Beam in Manchester?

In Greater Manchester, creating open-plan spaces has become a popular way to improve homes, from Victorian terraces in Chorlton to 1930s semis in Didsbury. Whether you are knocking through a dining room to a kitchen or removing a chimney breast, the work almost always involves installing a steel beam.

Many homeowners assume that buying a beam is as simple as visiting a builder’s merchant. However, under UK Building Regulations, any significant structural alteration must be proven to be safe. For many projects, providing accurate steel beam structural calculations in Manchester is a legal requirement to get your work approved.

This guide explains why you need these calculations, what they actually prove, and how the process works with Manchester Building Control.

What Do We Mean by a Steel Beam or RSJ?

You will often hear builders refer to an "RSJ". This stands for Rolled Steel Joist. It is the technical name for the I-shaped steel beams commonly used in residential construction. Because steel is incredibly strong for its size, an RSJ can span a wide gap (like the width of a room) while supporting the heavy weight of the floors and roof above.

While they all look similar, steel beams come in many different weights and sizes. Installing the wrong one can lead to sagging, cracking, or structural failure.

When Building Control Requires Calculations

If you are carrying out structural work in Manchester, you must comply with Approved Document A of the Building Regulations. You will typically need structural calculations if you are:

• Removing a load-bearing wall: This includes internal walls that support floor joists or walls above.
• Installing bi-fold doors: Widening an opening in an external wall requires a new, longer lintel or beam to support the brickwork above.
• Removing a chimney breast: If you remove the breast on the ground floor, the heavy masonry stack on the first floor and in the loft must be supported by a system of steel beams.
• Building an extension: Steel beams are often needed to support the roof or to create openings into the existing house.
• Converting a loft: New steel beams are usually required to support the new floor and strengthen the roof structure.

Why "My Builder Will Sort It" Is Not Enough

Builders are experts at construction, but they are not structural designers. A common mistake is assuming that because a builder installed a "6-inch beam" in a neighbour's house, the same beam will work in yours.

Every house is different. Even in a row of terraced houses, one might have a heavier concrete tile roof while another has slate. One might have a water tank in the loft directly above the wall you want to remove. These differences change the "load" (weight) the beam must carry. Guesswork is dangerous and is not accepted by Building Control inspectors.

Understanding Steel Beam Structural Calculations in Manchester

When an engineer produces a calculation package, they are checking several critical factors to ensure the safety of your property.

The Loads

The engineer calculates the "Dead Load" (the constant weight of the bricks, timber, and tiles) and the "Live Load" (the weight of people, furniture, and snow). They apply safety factors to ensure the beam can handle worse-than-expected conditions.

Deflection

A beam might be strong enough not to snap, but if it is not stiff enough, it will bend in the middle. This is called deflection. If a beam sags even slightly, it can crush the plaster on the ceiling below or cause doors on the floor above to jam. Calculations ensure the beam is stiff enough to prevent this.

The Beam Size

Based on the loads and span, the engineer selects the most efficient beam size (e.g., 203x133x30 UB). This proves to the inspector that the chosen steel is adequate.

Bearings and Padstones: Why Bricks Are Not Enough

A heavy steel beam concentrates a massive amount of weight onto the small area where it rests on the wall. If you sit a steel beam directly onto standard house bricks, the weight can crush the masonry, leading to cracks or collapse.

To prevent this, engineers design "padstones." These are dense blocks of concrete that sit under the ends of the beam. They spread the concentrated weight safely into the brickwork below. Your structural calculations will specify exactly what size these padstones need to be.

The Hidden Risk: Temporary Works

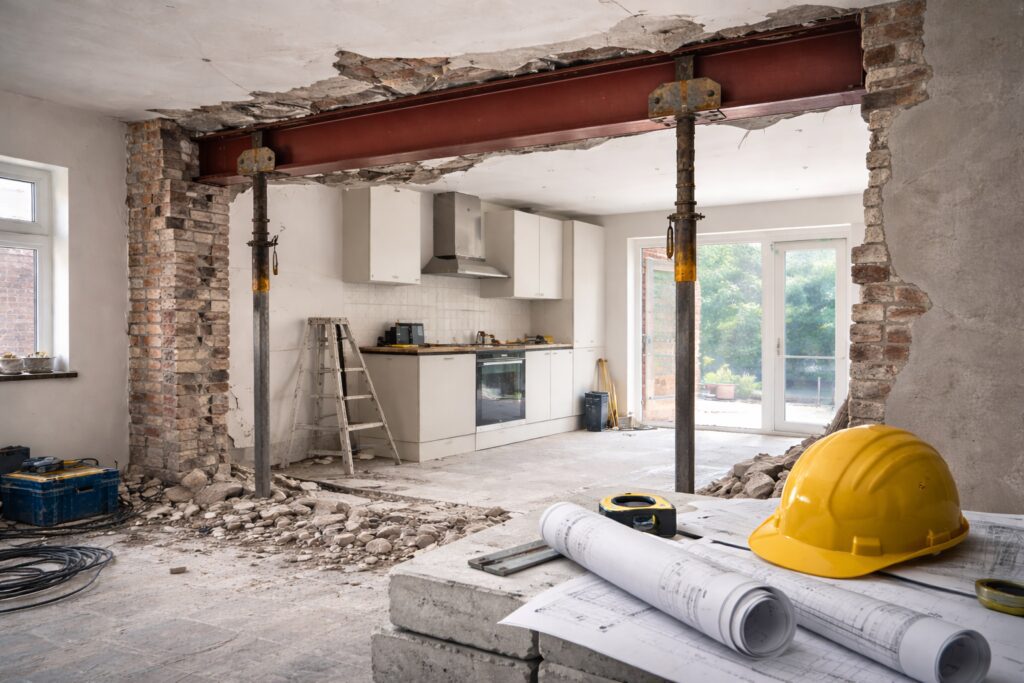

The most dangerous part of removing a wall is the period when the old wall is gone but the new beam is not yet fully installed. The masonry above must be supported by "Acrow props" and "Strongboy" attachments.

While the permanent design is the engineer's job, the builder is responsible for safely propping the structure. However, the engineer's notes often provide crucial guidance on the sequence of work to ensure the building remains stable throughout the renovation.

Structural Calculations vs. Drawings

You generally need two documents for your project:

• The Calculations: These are pages of mathematics. They are primarily for the Building Control officer to check. They prove the design works.
• The Structural Drawings: These are for the builder. They show exactly where the beam goes, how it sits on the padstones, and how it connects to the existing walls.

Providing just the calculations to a builder can lead to mistakes, as they may miss important details about connections or padstone sizes.

The Building Control Process in Manchester

Whether you use Manchester City Council, Trafford Council, or a private inspector, the process typically follows one of two routes:

Full Plans Application

You submit your calculations and drawings before work starts. The council checks them and issues an approval notice. This is the safest route as you know the design is correct before you buy any steel.

Building Notice

You tell the council you are starting work. The inspector checks the work on site. They will still ask to see the structural calculations. If you cannot provide them, or if the installed beam is too small, you may have to replace it at your own expense.

Common Mistakes to Avoid

• Ordering a beam before the design is finished: Beam sizes often change once the engineer runs the exact numbers.
• Ignoring the bearings: Builders sometimes forget to install the specified padstones, leading to masonry cracks later.
• Covering up too early: You must let the Building Control officer inspect the steel beam and padstones before you box them in with plasterboard.

Summary

Installing a steel beam is a major structural alteration that requires precision and legal compliance. Guesswork can lead to unsafe homes and problems when you eventually try to sell the property. By obtaining professional calculations, you ensure your renovation is safe, compliant with regulations, and built to last.
